Teardrop Flag
- Indoor / Outdoor flags
- Single or double sided
- Dye Sublimated 4 oz polyester mesh flag material
- Fiberglass and aluminum pole set
- Base options for indoor and outdoor
- Optional carry bag
Trade pricing for approved accounts
Next Day Turnaround and Cut-off Time:
Order and submit artwork before 4pm PST ships next business day. Order after 4pm add 1 business day.
Orders over 100 qty require 2 extra business days.
Same Day Turnaround:
Not available for this product.
Teardrop flags have an iconic curved flag shape that looks good indoor and out. These full-color dye-sublimated flags offer a large design space.
Our mesh flag polyester is direct printed and then sublimated. This creates “Print thru” for single sided flags; full color and vibrant on the front – muted and mirrored but legible when viewed from the back.

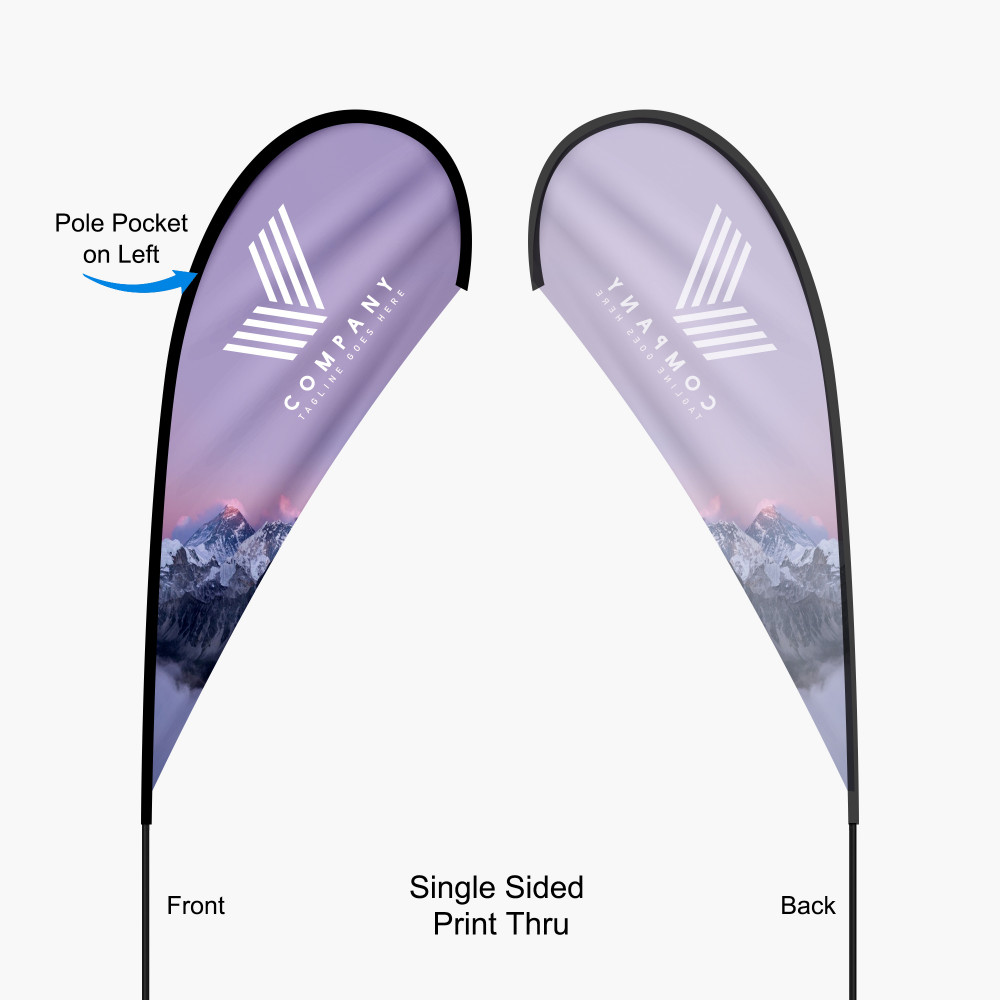

- Single sided Print Thru flag graphic with black nylon pole sleeve to the left of the print when viewed from the front

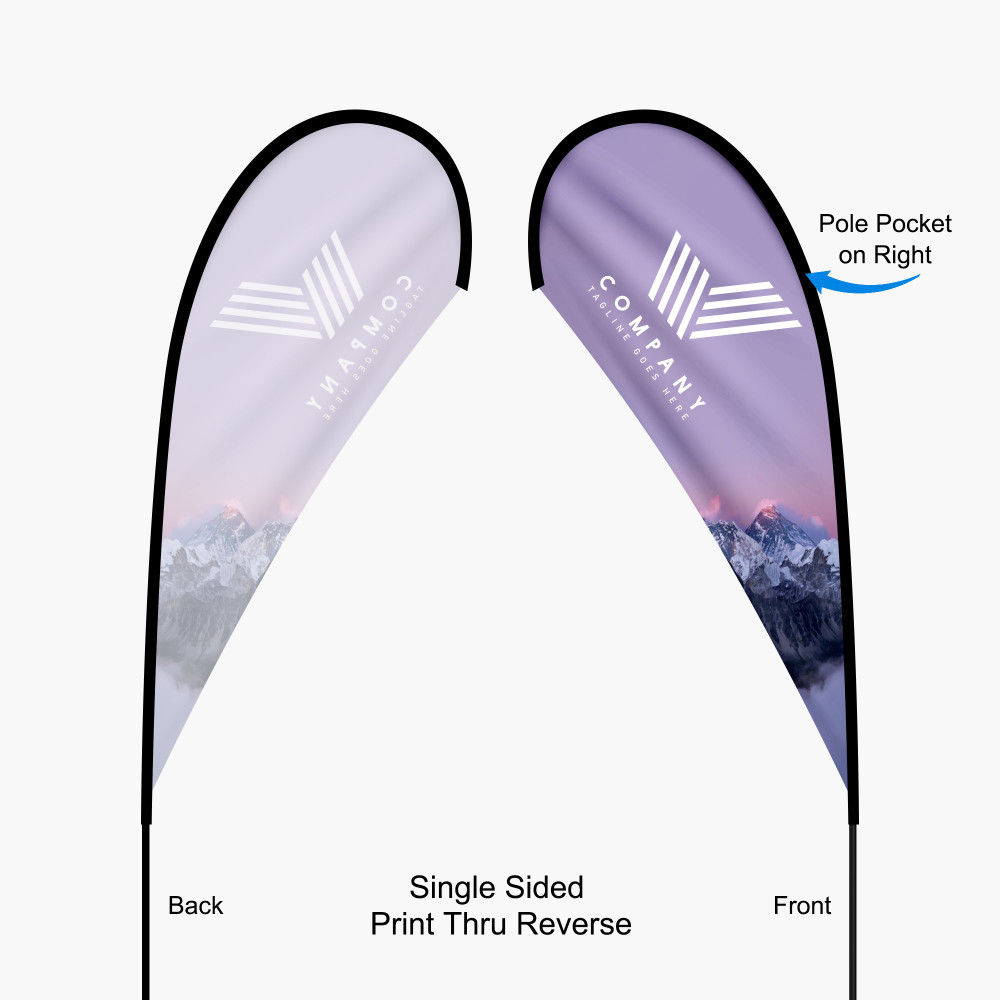

- Single sided Print Thru Reverse flag graphic with black nylon pole sleeve to the right of the print when viewed from the front

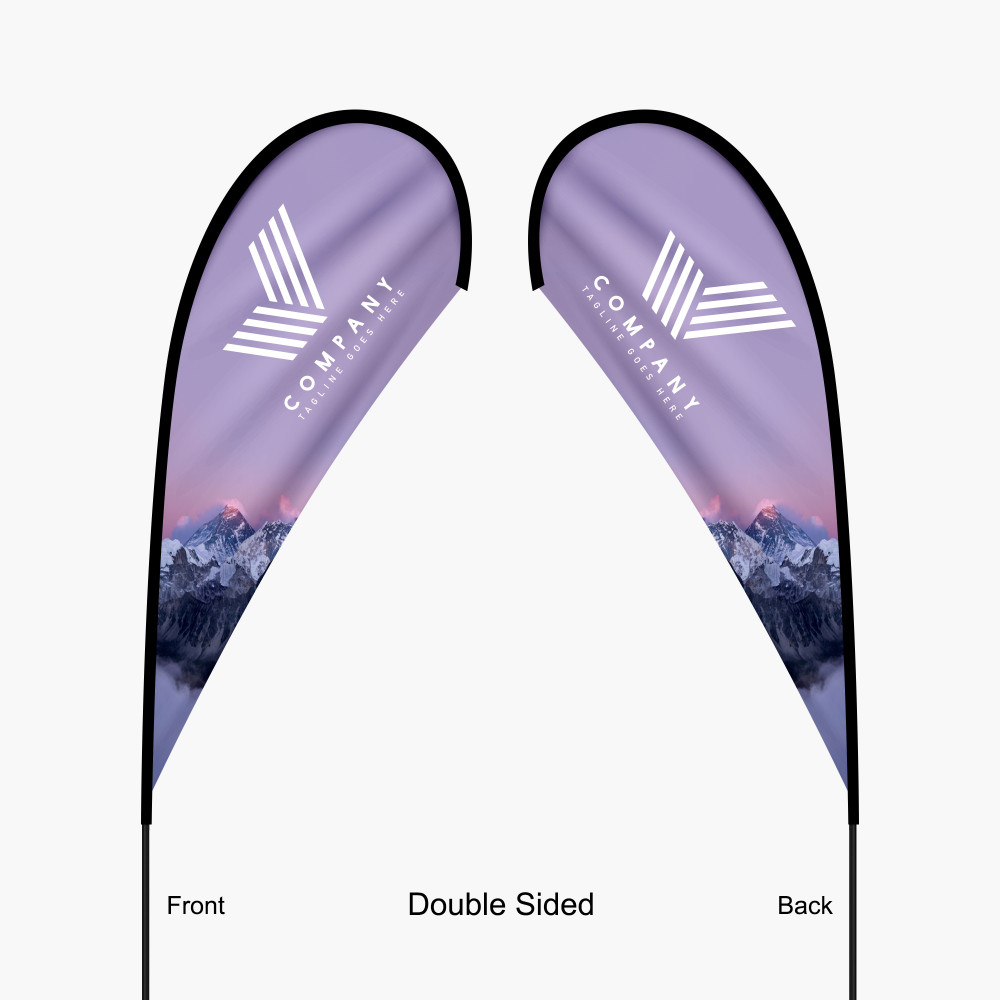

- Double Sided separate flag graphics are sewn back to back with a silver block out layer in between

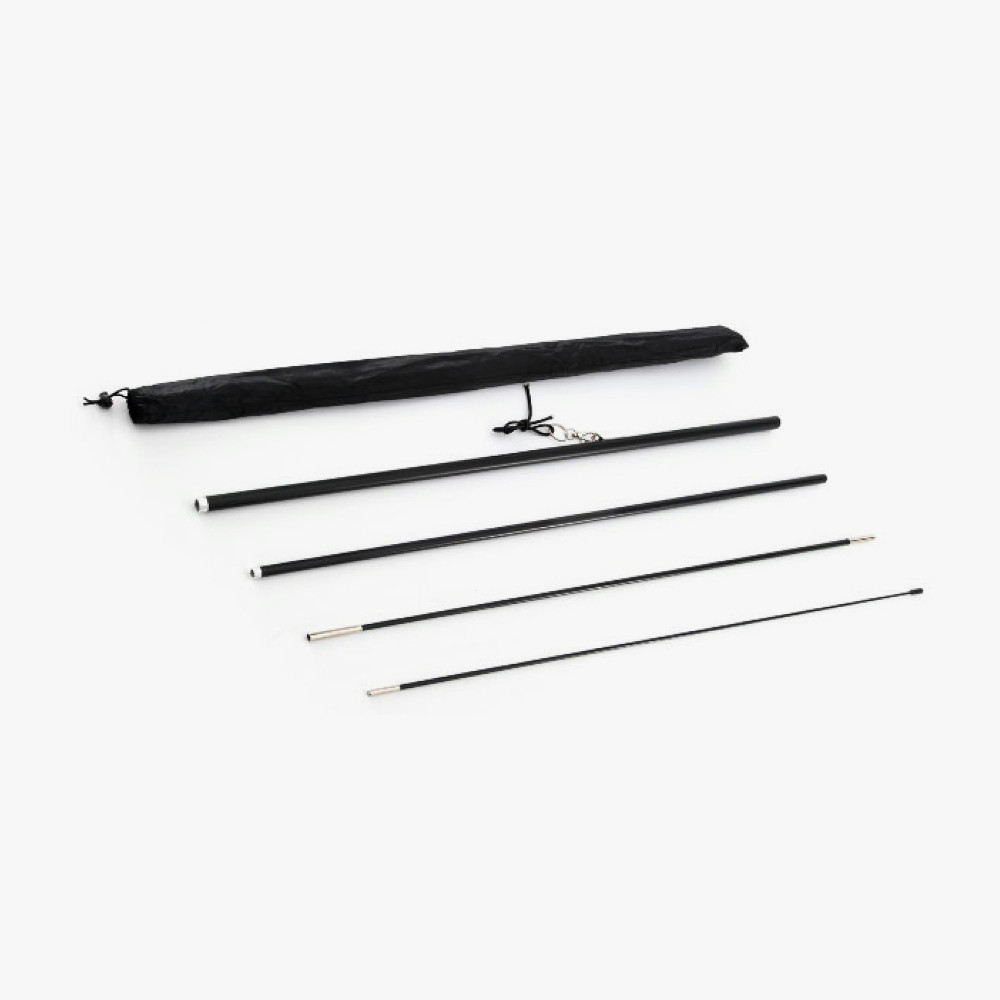

Black aluminium/fiberglass pole sets are quick to assemble and no tools are required.

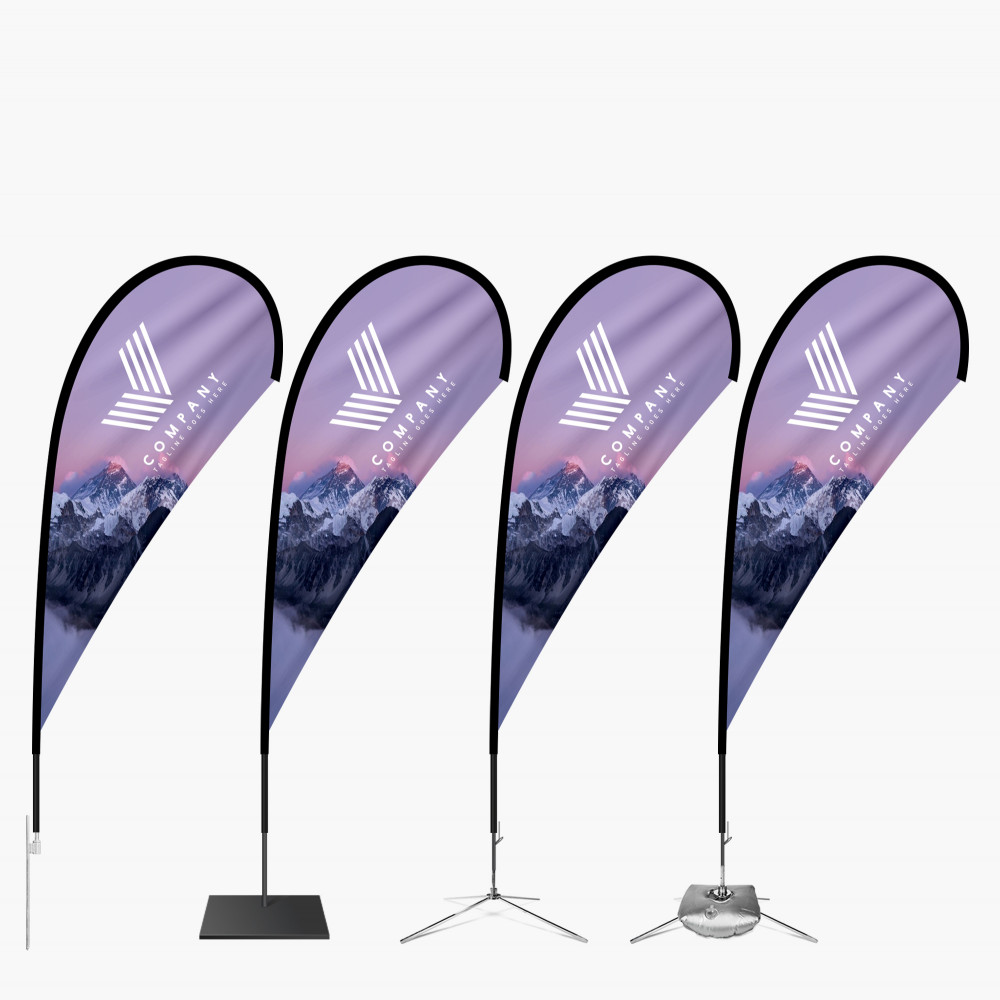

The ground stake can be used to install in soft ground, or upgrade to a cross base or square base when a flag will be displayed on hard indoors or outdoor surfaces. The optional carry bag is great for when you plan to travel with or store your flag.
Spec

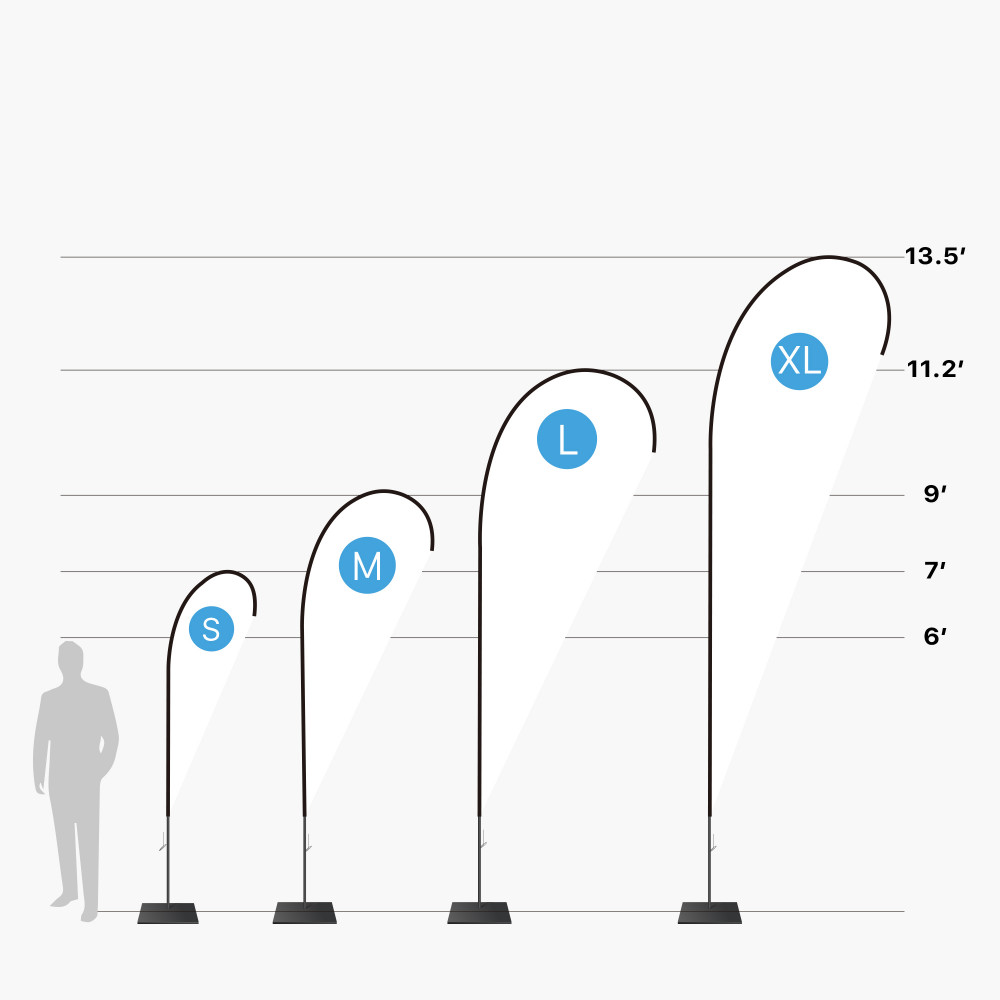

Size & Specifications
| Size | Assembled Height | Graphic Size | Flag Weight | Flag w/ Pole Weight | Pole Set Pieces |
|---|---|---|---|---|---|
| X-Large | 13.5′ | 44.95″ x 140.75″ | 1.5 lbs | 2.43 lbs | 5 pc |
| Large | 11.2′ | 40.38″ x 101.63″ | 1.3 lbs | 1.79 lbs | 4 pc |
| Medium | 9′ | 32.54″ x 78.64″ | 1.1 lbs | 1.4 lbs | 4 pc |
| Small | 7′ | 23.17″ x 63.52″ | 0.8 lbs | 1.14 lbs | 4 pc |
Material & Print Specifications
Print Method: Dye Sublimated
Graphic Material: 4 oz Polyester mesh flag
Washable: Yes
Additional Accessories

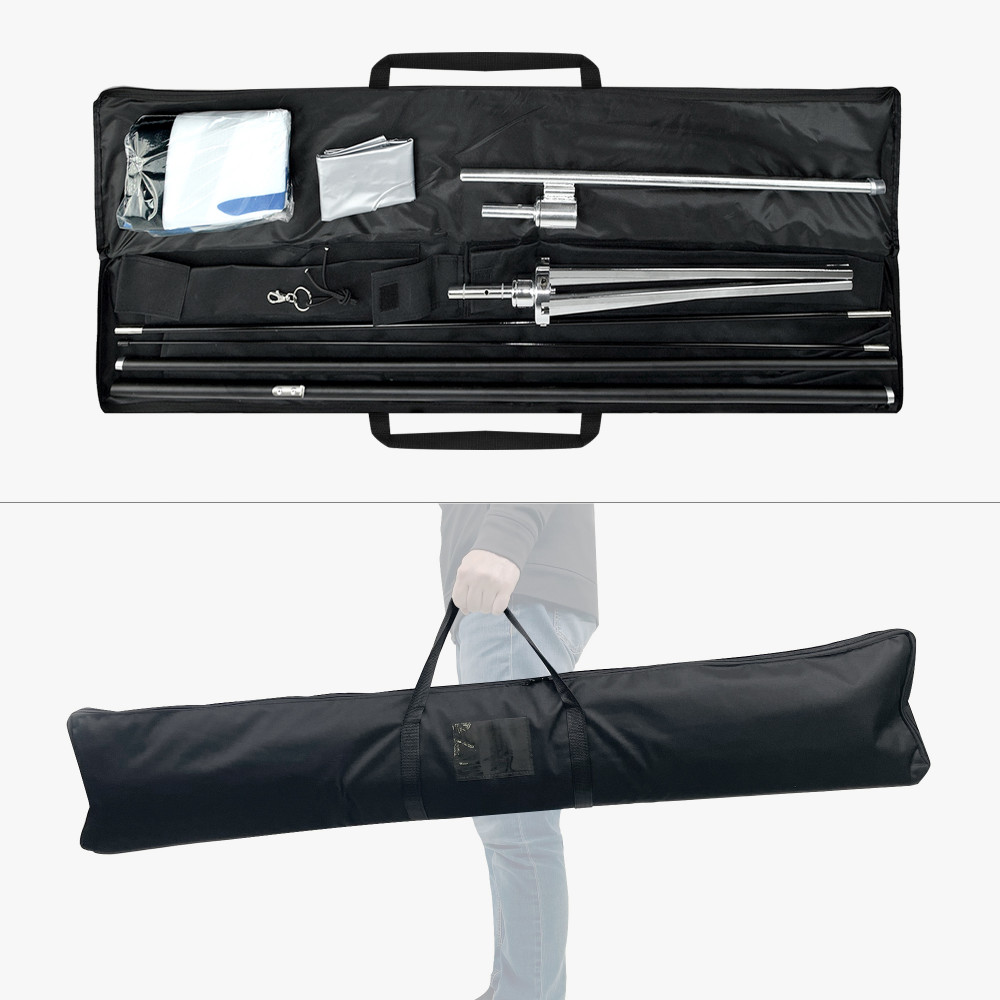

Carry Bag (Optional): Nylon / Zippered
- S/M = 1.41 lbs
- L/XL = 1.63 lbs
Hardware & Assembly
Pole Set: Aluminum and graphite pole set, Tool Free Interlocking poles

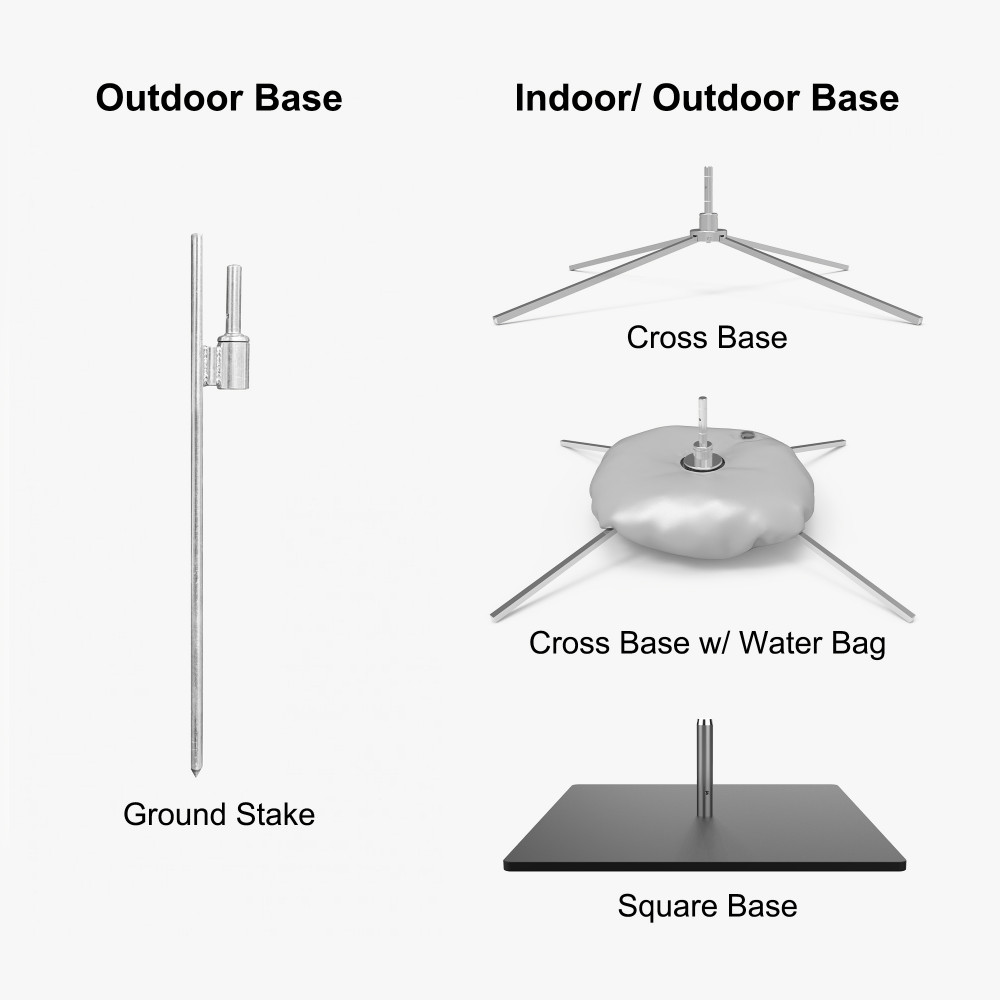

Base Hardware Specifications
Ground Stake
- Material: Aluminum
- Weight: 3.6 lbs
- Use: Outdoor soft ground
- Ball bearing allows flag to swivel in wind
Cross Base
- Material: Aluminum
- Weight: 6.73 lbs
- Use: Indoor/Outdoor hard surface
Water bag
- Material: Plastic
- Weight: 3 lbs empty
- Use with cross base for extra weight
Square Base
- Material: Steel
- Weight: 21.83 lbs
- Indoor/Outdoor hard surface
File Setup
- Accepted File Formats: JPEG or PDF (single page only)
- Color Space: CMYK
- Resolution: 150dpi for raster images (More than enough for large format)
- Max File Upload Size: 300MB
- Submit artwork built to ordered size – Scaled artwork is automatically detected and fit to order
- Do not include crop marks or bleeds
- Double sided products will be uploaded as two separate files unless otherwise specified in the artwork template
Additional Tips
- Do not submit with Pantones/Spot Colors – Convert to CMYK
- Convert live fonts to outlines
- Use provided design templates when available
Template Download (Template User Guide)
| Size |  |
 Photoshop |
 CorelDraw |
|---|---|---|---|
| X-Large | 1 side | 1 side | 1 side |
| Large | 1 side | 1 side | 1 side |
| Medium | 1 side | 1 side | 1 side |
| Small | 1 side | 1 side | 1 side |
- Do not adjust artboard size
- Do not reposition guidelines
- Design on layer labelled “Artwork”
- Delete mask/guide layers when instructed by template
Installation Guide
Step 1
Position the pole set.
Step 2
Connect the poles.
Step 3
Slide flag onto the pole.
Step 4
Secure flag down the pole.
Warranty and order issues
Every product is covered by our Terms and Conditions. Report defects or other order issues within five (5) business days of receiving your order. Any additional product warranty and its coverage are stated in the product details.
